Standard Laser SMT Stencil With Laser Cutting Forming High Opening Precision

At QHPCBA, we believe that your production schedule shouldn’t wait for your tooling. Our standard laser-cut SMT stencils are engineered for high-opening precision and built for rapid turnaround, ensuring your SMT assembly line never stops. Whether you are running a prototype or mass production, we deliver the quality you need, when you need it.

Why Choose QHPCBA Stencils?

• Extreme Precision: Our industrial-grade laser cutting technology ensures high-opening accuracy, essential for modern high-density PCBs.
• 2-Hour Express Delivery: We are a direct factory in Shenzhen. Your order hits our production line immediately—no middleman, no queue, just speed.
• Cost-Effective & Reliable: Optimized for both prototype runs and mass production without sacrificing quality.
• Universal Compatibility: Designed to fit perfectly with standard SMT assembly machines and common mounting processes.
• Superior Solder Release: Engineered for smooth paste release to eliminate bridging and tombstoning, even for fine-pitch components.

Technical Specifications

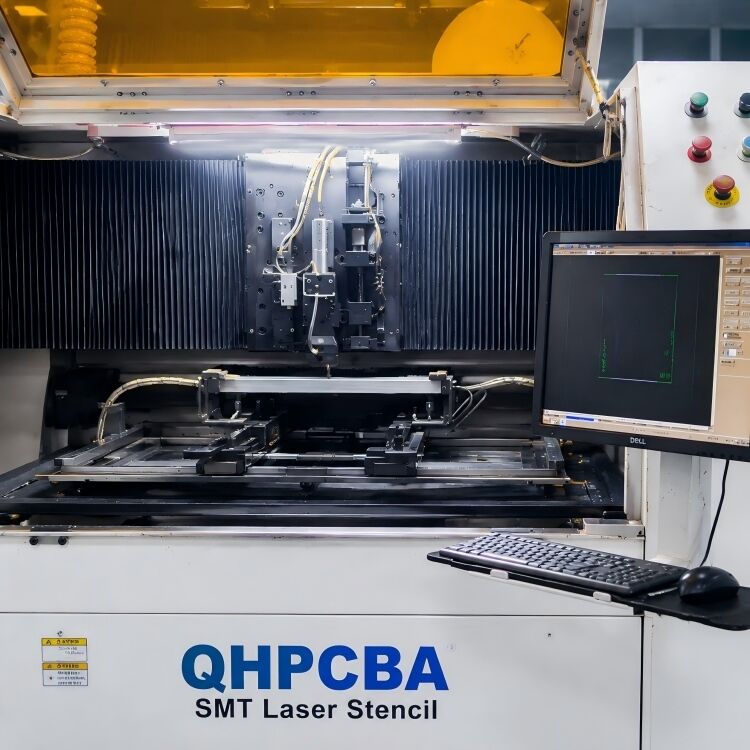

• Manufacturing Method: High-Energy Fiber Laser Cutting.
• Precision: 0.01mm opening accuracy.
• Material: High-quality Stainless Steel (Grade 304).
• Thickness Options: Standard options from 0.10mm to 0.20mm (Customizable).

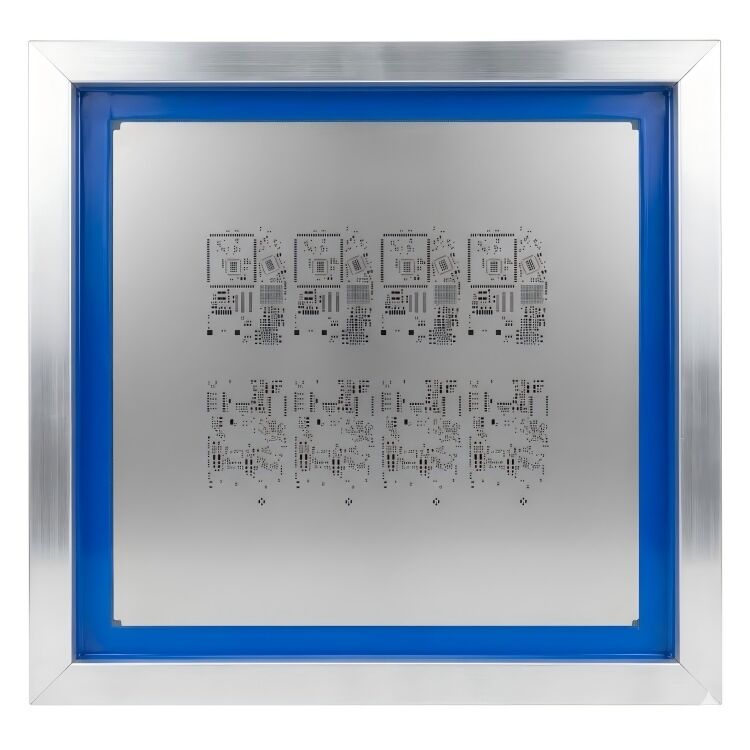

• Frame/Frameless: Available in standard frame sizes or frameless/foil-only options to save on shipping costs.
• Coating Options: Standard or Nano-coated (for improved solder release).

The QHPCBA Advantage: Factory-Direct

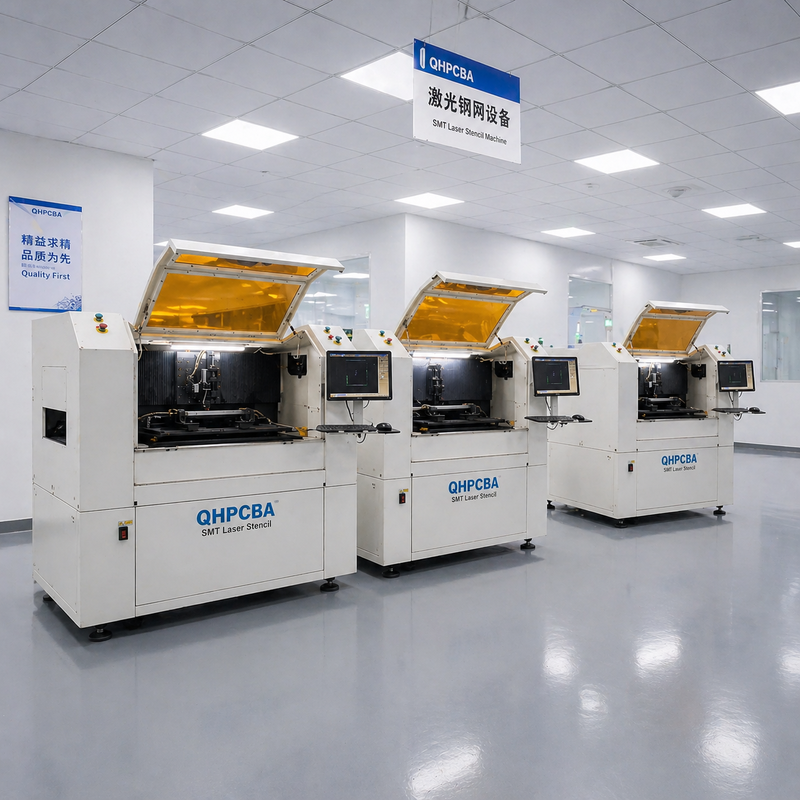

Unlike trading platforms that aggregate orders, QHPCBA is a physical factory. When you order from us, you aren't waiting for a "platform" to approve your ticket; you are sending files directly to our laser operators.

Get your stencils cut today. Start your production tomorrow.
