370 X 470mm Standard Framed Laser Cut Solder Paste Stencil For Manual SMT Printing
-
Highlight
370 X 470mm solder paste stencil frame
,0.30mm solder paste stencil frame
,0.25mm pcb stencil frame
-
Product Name370×470mm Standard Framed SMT Stencil, High-precision Laser-cut, RoHS Compliant, Ideal For Manual/semi-automatic SMT Printing Lines. Fast Delivery, Competitive Pricing, Custom Aperture Design Available.
-
Effective Printing Area190mm × 290mm
-
Base MaterialHigh-quality 304 / 316 Food Grade Stainless Steel
-
Standard Sheet Thickness0.04MM.0.05MM.0.08mm, 0.10mm, 0.12mm, 0.15mm, 0.18mm, 0.20mm, 0.25mm, 0.30mm (Customizable)
-
Max. Custom Size580mm × 580mm (Customizable Size Available)
-
Tension Standard30–50 N/cm (stable)
-
Aperture Precision±0.01mm
-
Minimum Aperture0.03mm
-
Positioning Accuracy±0.005mm
-
ComplianceRoHS, REACH
-
Compatible EquipmentManual SMT Printers, Semi-automatic Screen Printers
-
Supported Design File FormatGerber, PCB, DXF, CAD
-
Place of OriginCHINA
-
Brand NameODM/OEM
-
CertificationTB25Q0225R0S
-
Model NumberSMT Frameless Steel Sheet
-
Minimum Order Quantity1
-
Price15
-
Packaging Details37*48*2.5cm
-
Delivery Time2 HOURS
-
Payment TermsL/C,D/A,D/P,T/T,Western Union
-
Supply Ability500pca

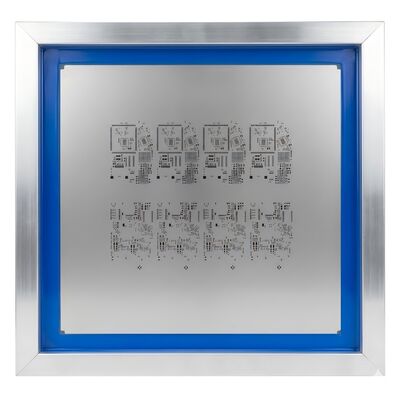

370 X 470mm Standard Framed Laser Cut Solder Paste Stencil For Manual SMT Printing
370×470mm Standard Framed SMT Stencil | Laser-Cut Solder Paste Stencil for Manual/Semi-Auto SMT Printing
Our 370*470mm Standard Framed SMT Stencil is the industry's most widely adopted size for manual and semi-automatic SMT solder paste printing. Constructed with a rigid 30±3mm thick aluminum alloy frame and a precision laser-cut stainless steel foil, this stencil delivers consistent tension, high positional accuracy, and reliable printing performance for PCB prototyping, small-batch production, and high-mix SMT assembly.
Key Advantages
- Industry Standard & Universal Compatibility: The 370*470mm dimension is the global standard size for framed SMT stencils, matching almost all manual printing workstations and semi-automatic printers for plug-and-play use.
- High Rigidity & Stable Tension: Thickened aluminum alloy frame maintains excellent flatness and stable tension during long-term use, preventing frame deformation and ensuring uniform solder paste release.
- Ultra-High Precision for Fine-Pitch Components: Advanced laser cutting and nano polishing provide smooth aperture walls and high dimensional accuracy, ideal for 01005, 0201 chips, 0.4mm pitch BGA/QFN components and high-density HDI PCBs.
- Lightweight Structure & Cost-Effective: Moderate size reduces packaging volume and shipping expenses while offering shorter lead times and lower costs compared to custom large-size stencils.
- Fast Delivery & Low MOQ: 2-hour fast delivery for standard orders with complete Gerber files and minimum order quantity of 1 piece, perfect for rapid prototyping needs.
Applications
- PCB prototype development and engineering verification
- Small-batch SMT assembly and production
- Manual and semi-automatic solder paste printing
- High-mix low-volume (HMLV) electronic manufacturing
- R&D laboratories, repair and rework stations
- Educational and training scenarios for SMT processes
Order & Service Information
| Minimum Order Quantity | 1 piece |
| Lead Time | 2-hour fast delivery for standard orders |
| File Support | Gerber, PCB, DXF, CAD formats |
| Customization | Foil thickness, aperture design, nano coating available |
| Shipping | Worldwide delivery with cost-effective freight |
| Quality Assurance | 100% optical inspection before shipment; free replacement for quality defects |
