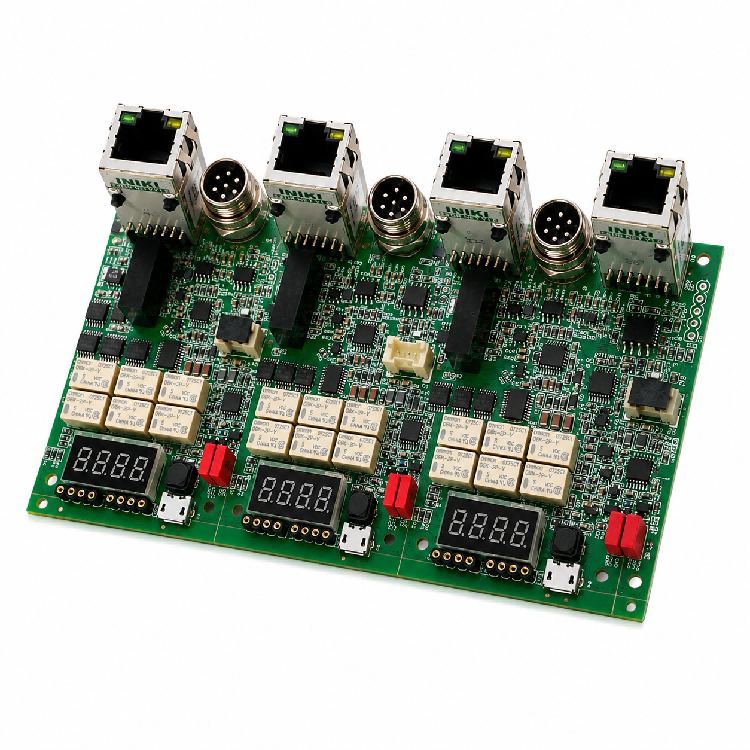

High Density HDI Multi Layer Embedded Control Board Gold Finish

High Density HDI Multi Layer Embedded Control Board Gold Finish

  • Highlight

    High Density embedded control board

    ,

    embedded control board

    ,

    HDI smt board assembly

  • Layer Count
    8-12 Layers HDI (Blind/Buried Vias)
  • Material
    High-TG FR-4 (Halogen Free)
  • Surface Finish
    ENIG (Electroless Nickel Immersion Gold)
  • BGA Pitch / BGA
    Min 0.35mm Pitch
  • Min Trace/Space
    2.5mil
  • Application
    AI Edge Computing, Medical Imaging, Industrial Tablet
  • Place of Origin
    china
  • Brand Name
    QHPCBA
  • Certification
    ISO 9001
  • Model Number
    QHPCBA26511
  • Minimum Order Quantity
    1
  • Price
    $10
  • Packaging Details
    Vacuum packaging+Cardboard box
  • Delivery Time
    6day
  • Payment Terms
    Western Union,T/T
  • Supply Ability
    1000000PCS

High Density HDI Multi Layer Embedded Control Board Gold Finish

High-Density HDI Multi-Layer Embedded Control Board - Gold Finish

Complexity: This board features a high-density SoC/FPGA BGA design, surrounded by 0201 passive components, requiring extreme precision in SMT placement.

Interconnect Technology: Utilizes advanced HDI (High-Density Interconnect) with blind and buried vias to manage complex signal routing in a compact form factor.

Interface Rich: Integrated with multiple FPC/FFC connectors (J10-J26), SIM/MicroSD slots, and high-speed display interfaces.

Feature QHPCBA (Factory‑Direct) Generic Platforms
Response Time Direct Engineering Review 12‑24h Customer Support Ticket
Production Speed 8 Hours (SMT) 3‑7 Days (Standard)
Middleman Markup 0% (Factory Pricing) Platform Commission Fees
DFM Feedback Active & Collaborative Automated "Reject"
Facility Access Visit Our Shenzhen Factory Virtual/Office Address
Manufacturing Excellence at QHPCBA

Our factory specializes in the rapid prototyping of complex HDI boards, ensuring structural integrity and signal fidelity.

Ultra-Precision Stencil (2-Hour): Custom laser-cut stencils with nano-coating options for perfect BGA solder release.

Rapid PCB Fabrication (24-48H): Specialized supply chain for multi-layer HDI prototyping.

Expert SMT Assembly (8-Hour): Equipped with high-speed Yamaha/Pana-sonic mounters capable of 01005 component placement and X-Ray BGA inspection.

Quality Control
  • X-Ray Inspection: 100% inspection for BGA & QFN internal soldering.

  • AOI Testing: Full automated optical inspection for all SMT components.

  • Impedance Control: Strict tolerance matching for high-speed differential pairs.
