29×29 inch VectorGuard Frame SMT Stencil with Electro-polishing and Fast Turnaround for PCB Assembly

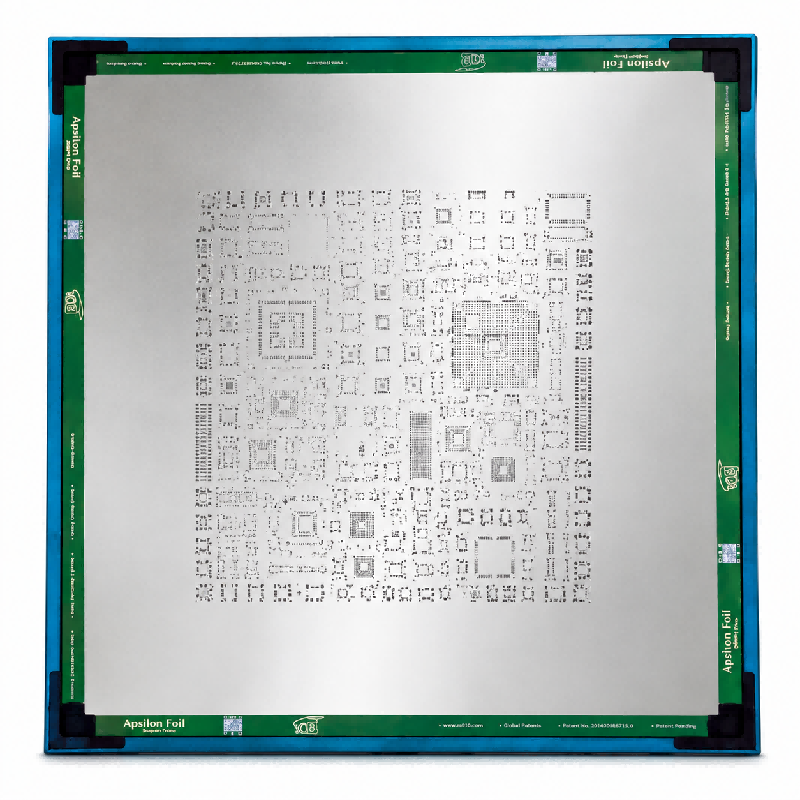

29×29 inch (736×736mm) VectorGuard Frame SMT Stencil
Precision SMT Stencil with Fast Turnaround

QHPCBA specializes in high-precision SMT stencil manufacturing for PCB prototype and small-volume production. Our 29×29 inch VectorGuard frame stencils are designed for high-performance SMT printing applications, providing excellent paste release, stable printing accuracy, and fast delivery.

With our own laser cutting workshop and SMT tooling workshop in Shenzhen, China, we can quickly respond to customer requirements, optimize stencil solutions, and solve printing issues during the assembly process.

For urgent prototype projects, QHPCBA provides fast SMT stencil production within hours, helping customers shorten product development cycles and accelerate time-to-market.

Product Overview

The 29×29 inch VectorGuard frame stencil is widely used in automated SMT assembly lines requiring high positioning accuracy and repeatable printing performance.

Compatible with popular SMT printer systems, the VectorGuard frame design provides excellent tension stability and allows quick stencil replacement, making it ideal for:

  • PCB prototype assembly
  • New product introduction (NPI)
  • Small and medium batch production
  • High-density PCB manufacturing
  • Fine-pitch component assembly

Key Features & Advantages
1. High Precision Laser Cutting Technology

QHPCBA uses advanced laser cutting equipment to manufacture SMT stencils with:

  • Smooth aperture walls
  • Accurate opening dimensions
  • Minimal burrs and deformation
  • Excellent solder paste release performance

Suitable for:

  • 0201 / 0402 components
  • QFN
  • BGA
  • Fine pitch IC
  • High-density PCB designs
2. VectorGuard Frame System Compatibility
Stable tension performance

The reusable frame structure maintains consistent stencil tension during printing, improving:

  • Printing accuracy
  • Paste transfer efficiency
  • Production stability

Compared with traditional fixed aluminum frames:

  • Faster stencil replacement
  • Lower long-term operating cost
  • Better production flexibility

3. Fast Production & Quick Turnaround

Prototype projects often face tight schedules. QHPCBA provides:

SMT Stencil Fast Delivery
  • Standard stencil: Fast production
  • VectorGuard stencil: Rapid manufacturing support
  • Urgent orders can be prioritized

Our advantage:

From Gerber file review → Engineering confirmation → Laser cutting → Inspection → Shipping

The whole process is controlled in our Shenzhen factory.

4. Professional Engineering Support

Different PCB designs require different stencil solutions. Our engineering team can help optimize:

  • Aperture design
  • Pad opening ratio
  • Thermal pad structure
  • BGA/QFN stencil design
  • Step stencil requirements

Not only manufacturing stencils, we help customers improve SMT printing results.


5. One-Stop SMT Solution Capability

Different from ordinary stencil suppliers, QHPCBA has:

Own SMT Supporting Workshops

SMT Laser Stencil Workshop

  • Standard SMT stencil
  • Nano coating stencil
  • Step stencil
  • VectorGuard stencil

SMT Fixture Workshop

  • PCB assembly fixtures
  • Testing fixtures
  • Welding fixtures

This allows us to quickly understand customers' production problems and provide practical solutions.

Why Choose QHPCBA?
Shenzhen Factory Direct Supply

We are a professional PCB assembly supporting manufacturer located in Shenzhen, China. Our advantages:

  • Direct factory price - No middleman, direct communication with engineers
  • Fast response - Engineering feedback within hours
  • Production visibility - Customers can check order progress anytime
  • Quality control - Every stencil is inspected before shipment
  • SMT experience - Our team understands real SMT production challenges
Specifications
Item Specification
Product VectorGuard Frame SMT Stencil
Frame Size 29×29 inch
Dimension 736×736mm
Material Stainless Steel 304
Thickness 0.08mm / 0.10mm / 0.12mm / Customized
Cutting Method Laser Cutting
Surface Treatment Electro-polishing / Nano Coating
Application SMT PCB Assembly
Service Prototype & Small Batch Production
Applications

29×29 VectorGuard SMT stencils are widely used in:

  • Consumer Electronics
  • Industrial Control Equipment
  • Medical Electronics
  • Automotive Electronics
  • IoT Devices
  • Smart Hardware
  • Communication Equipment
QHPCBA Service Promise

Fast. Precise. Professional.

From SMT stencil manufacturing to PCB assembly support, QHPCBA helps global customers complete prototype projects faster.

If you need a 29×29 inch (736×736mm) VectorGuard SMT stencil, send us your Gerber file today.

Our engineers will review your design and provide a fast quotation.
