Nano Step Coated Stainless Steel SMT Stencil 1 Hour Delivery Shenzhen Source Factory
-
Highlight
1 Hour Nano Step Stencil
,Shenzhen SMT Stencil Factory
,Laser Cut Nano Coated Stencil
-
Product Name550mm X 650mm (55x65cm) Framed Stencil
-
Stencil Foil MaterialFG High-end Stainless Steel (Cr >=18%, Ni >=10%, Mo 2-3%, Carbon <=0.03%)
-
Nano CoatingUltra-thin 1-2um, Super Hydrophobic (contact Angle >150deg)
-
Step TechnologyStep Height 0.05-0.30mm, Accuracy +/-0.01mm
-
Aperture Precision+/-0.01mm
-
Minimum Aperture0.03mm
-
Minimum Pitch0.20mm (0201, 01005)
-
Frame6061-T6 High-strength Aluminum Alloy
-
Tension Standard40-50 N/cm
-
Turnaround1 Hour Rush Delivery
-
Place Of OriginShenzhen, China
-
ComplianceRoHS, REACH
-
CertificationUL
-
Place of OriginShenzhen, China
-
Brand NameQHPCBA
-
CertificationUL
-
Model NumberQH-NANO-1H
-
Minimum Order Quantity1 Piece
-
PriceUSD 30-150 / Piece
-
Packaging Details56*66*3.5cm flat export carton
-
Delivery Time1 hour rush delivery, 24 hours standard
-
Payment TermsL/C, D/A, D/P, T/T, Western Union
-
Supply Ability500 PCS per Month
Nano Step Coated Stainless Steel SMT Stencil 1 Hour Delivery Shenzhen Source Factory
Nano Step Coated SMT Stencil - 1 Hour Delivery from Shenzhen Source Factory

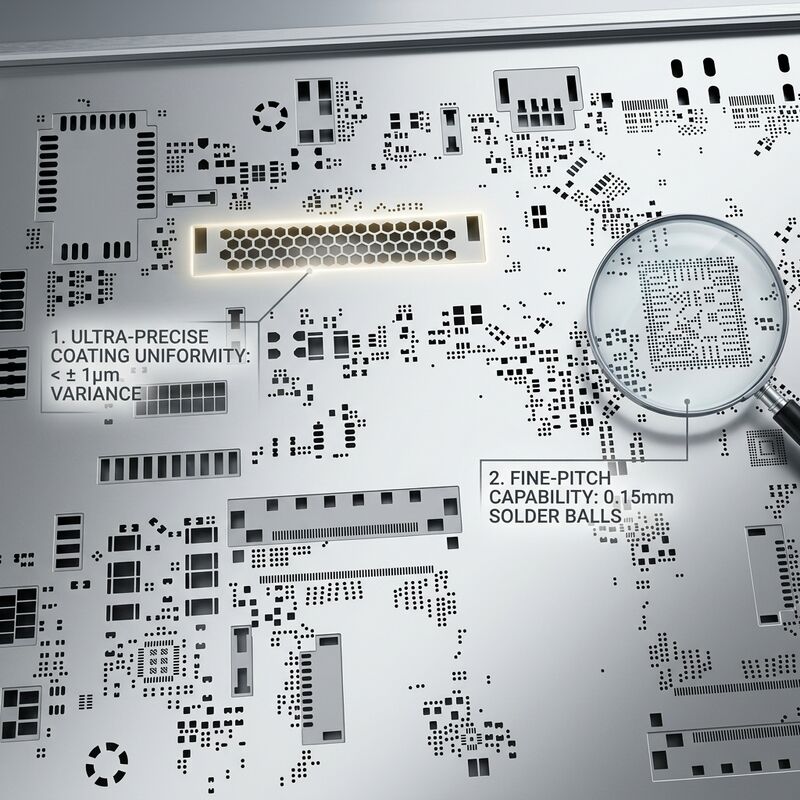

Direct from our Shenzhen source factory, this nano step coated FG stainless steel SMT stencil is engineered for complex precision PCB solder paste printing. Ultra-fast 1 hour rush delivery is available for urgent production.
Why Choose Our Shenzhen Source Factory
- True source factory in Shenzhen - factory direct, better price and lead time
- 1 hour rush delivery for urgent orders
- Advanced nano step coating and fiber laser cutting
Technical Specifications
- Size: 550mm x 650mm (55x65cm), effective printing area 350x450mm
- Foil: FG high-end stainless steel, Cr >=18%, Ni >=10%, Mo 2-3%
- Nano coating: 1-2um, super hydrophobic, contact angle >150 degrees
- Step height 0.05-0.30mm, accuracy +/-0.01mm
- Aperture precision +/-0.01mm, minimum aperture 0.03mm, min pitch 0.20mm

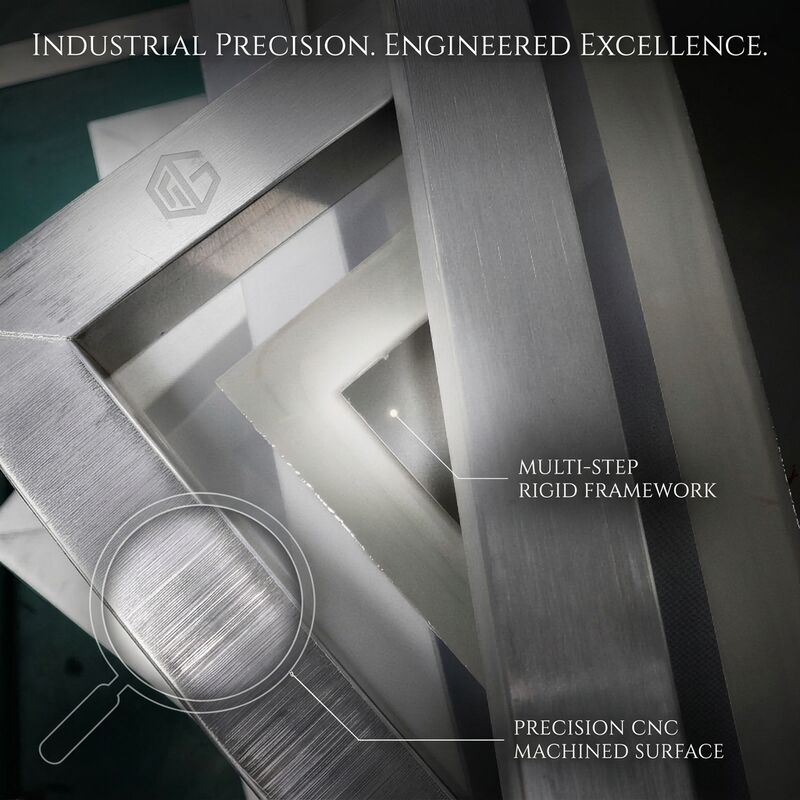

- Frame: 6061-T6 aluminum alloy, tension 40-50 N/cm
- Compliance: RoHS, REACH; UL certified
Applications
High-density interconnection (HDI), chip-scale packaging (CSP) and multi-component mixed PCBs.
Send your Gerber file and get a 1 hour rush quote - contact us now.
