Highlight
Multi Height Step Stencil
,LED PCB SMT Stencil
,Nano Coated Step Stencil
-
TypeMulti Height Step Stencil
-
Step LevelsMulti-step, 0.05-0.30mm
-
ApplicationLED PCB, Mixed-component Assembly
-
Nano Coating1-2um Hydrophobic
-
Thickness0.10-0.30mm
-
Aperture Precision+/-0.01mm
-
FrameAluminum Frame / Frameless
-
Turnaround1 Hour Rush Delivery
-
Place Of OriginShenzhen, China
-
ComplianceRoHS, REACH
-
CertificationUL
-
Place of OriginShenzhen, China
-
Brand NameQHPCBA
-
CertificationUL
-
Model NumberQH-STEP-LED
-
Minimum Order Quantity1 Piece
-
PriceUSD 30-180 / Piece
-
Packaging DetailsFlat export carton with rigid board
-
Delivery Time1 hour rush delivery, 24 hours standard
-
Payment TermsL/C, D/A, D/P, T/T, Western Union
-
Supply Ability500 PCS per Month
Multi Height Step SMT Stencil LED PCB 1 Hour Delivery Shenzhen Nano Coated

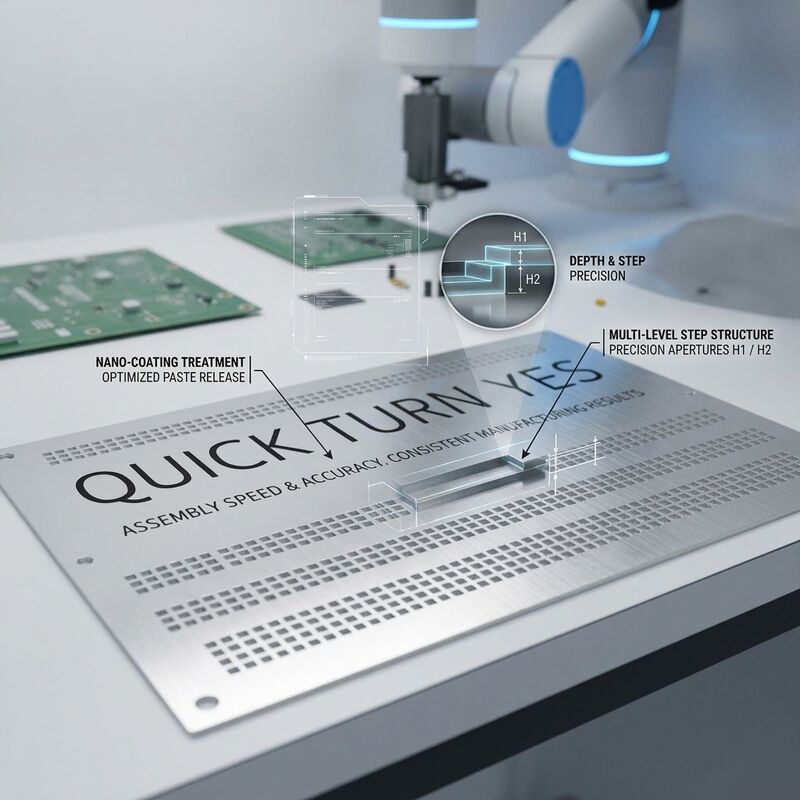

Multi Height Step SMT Stencil for LED and Mixed-Component PCBs
This multi height step SMT stencil solves uneven paste deposition on boards with components of different heights. Nano coated and laser cut in our Shenzhen factory, with 1 hour rush delivery.
Advantages
- Multi step levels from 0.05-0.30mm for varying component heights
- Nano coating ensures consistent solder paste release and less residue
- 1 hour rush delivery for urgent LED production
- Ideal for LED PCB and mixed-component assembly
Specifications
- Type: multi height step stencil
- Thickness: 0.10-0.30mm
- Aperture precision +/-0.01mm
- Frame: aluminum frame / frameless
- Compliance: RoHS, REACH; UL certified
Get a fast step stencil quote - contact us today.
